Changes to Front Wing Regulations in Formula 1: A Closer Look at the New Testing Protocols
As the excitement builds for the Spanish Grand Prix, the world of Formula 1 is undergoing significant changes, particularly regarding the regulations governing front wings. Starting this weekend, the governing body of Formula 1 is implementing stricter testing protocols aimed at reducing the permissible flex under load for front wings. This change is set to alter the dynamics of car performance, especially in how teams design their vehicles to gain a competitive edge.
Understanding the New Regulations
Under the current technical framework, specifically Article 3.15.4, Formula 1 regulations stipulate that the flap areas of front wings can only flex by a maximum of 15mm under load. However, this threshold is now being tightened to 10mm. This adjustment reflects a broader effort within the sport to enhance fairness and competitiveness by ensuring that no team can gain an unfair advantage through advanced engineering techniques that exploit the flexibility of wing components.
The Background of Aero-Elasticity
Aero-elasticity has been a focal point of interest and debate in Formula 1 since the 1990s. Given the aerodynamic loads that cars experience at high speeds, it is impossible for wings and other bodywork components to remain entirely rigid. Therefore, a certain degree of flex is not only expected but can be utilized strategically by teams. This flexibility can reduce drag, allowing cars to achieve higher speeds on the track.
Recent advancements in materials science have made it easier for teams to design components that can flex predictably. Through finite element analysis, engineers can craft carbon-fibre sheets to achieve the ideal balance between strength, weight, and controlled flex. As the technical regulations evolve and the quest for performance enhancements becomes increasingly challenging, teams have revisited these aero-elastic principles, often leading to scrutiny from the FIA, the sport’s governing body.
Notable Incidents and Reactions

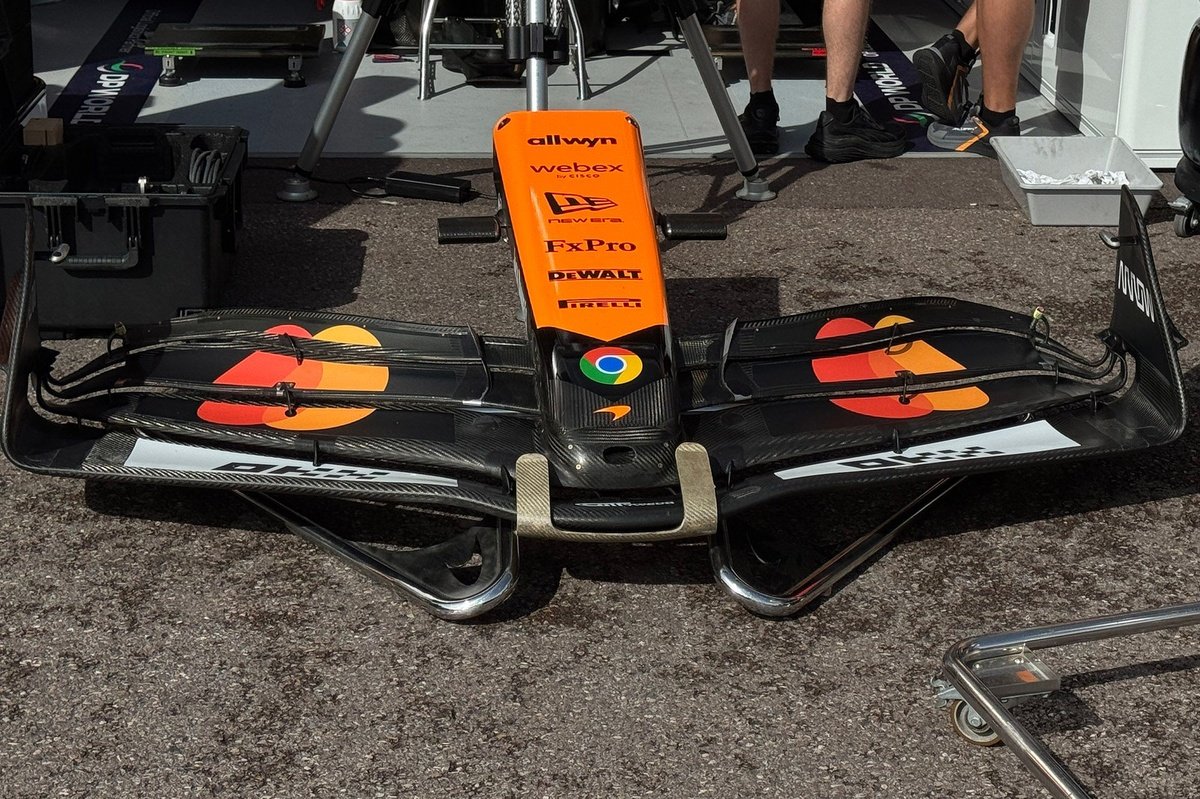

Last season, significant controversy arose when McLaren’s rear wings came under fire. Rivals accused the team of engineering their wings to flex in a way that increased the gap between the main planes while the car was in motion, thereby reducing drag. In response, the FIA enacted new parameters and testing protocols to mitigate what was dubbed ‘mini-DRS’. These measures included the installation of high-definition onboard cameras to monitor rear wing behavior during practice sessions.
As the season progressed, particularly before the Chinese Grand Prix, the FIA tightened these regulations further, especially after observing footage of the McLaren rear wing flexing during the Australian Grand Prix season opener. Despite these controversies, the FIA’s single-seater director, Nikolas Tombazis, had already committed to stricter measures following the pre-season test in Bahrain.
The decision to adjust the front-wing testing parameters was made back in January, but the implementation was postponed until the Spanish Grand Prix. This delay was intended to provide teams adequate time to adapt their designs, considering the complexities involved in aerodynamics and the lengthy processes required for concept development, simulation, and manufacturing. Notably, teams like Red Bull advocated for an earlier introduction of the new tests during the Emilia Romagna Grand Prix weekend, citing the need for competitive parity.
A Phased Approach to Regulation
The FIA has emphasized that this phased approach to introducing new regulations serves to help teams adapt without the necessity of scrapping existing components. Such adjustments aim to refine the FIA’s monitoring and enforcement capabilities regarding bodywork flexibility, ensuring a fair environment for all competitors and fostering an exciting racing atmosphere.
One of the primary challenges with testing for wing flex is that it is impossible to measure while the car is in motion. Therefore, a static load of 1000 Newtons is applied to both sides of the front wing simultaneously, and the flex must not exceed the newly established limit of 10mm. For context, one Newton is the force required to accelerate a mass of one kilogram at a rate of one meter per second squared.
In addition, the smaller rear flaps are subjected to a load of 60 Newtons, with a maximum allowable deflection of 3mm at the outboard edge. This measure is designed to prevent excessive flex in the ‘fish plates,’ the components that connect the wing elements to the main plane.
Speculation and Competitive Dynamics
The introduction of these new regulations has sparked much speculation about which teams may have previously benefited from the flexibility in their wing designs. Red Bull has been particularly vocal in suggesting that McLaren might have been utilizing such techniques effectively. Since the MCL39 has passed all existing tests, Red Bull’s strategy has shifted to highlighting videos on social media to keep the conversation about wing flexibility alive.
The dynamic nature of Formula 1 means that teams are continually looking for ways to improve their performance. The tightening of regulations regarding front wing flex is a clear indication that the sport is committed to maintaining a level playing field. As teams adjust to these new standards, the implications for car design and race strategy will undoubtedly be significant.
The Future of Formula 1 Design
As Formula 1 continues to evolve, the focus on bodywork flexibility highlights the ongoing challenges teams face in balancing performance with compliance to regulations. The intricate relationship between aerodynamics and vehicle performance is at the heart of what makes Formula 1 so captivating. With each new technical regulation, teams must innovate and adapt, leading to a constant evolution in design philosophy.
The upcoming races will provide a critical testing ground for these new regulations. Teams will be keen to see how their designs hold up under the revised testing conditions and whether they can maintain or improve their competitive edge in light of these changes.
Conclusion
The adjustments to front wing testing protocols in Formula 1 signify a pivotal moment in the sport’s ongoing evolution. As teams navigate these changes, the implications for car design, race strategy, and overall performance will be closely watched by fans and analysts alike. With the Spanish Grand Prix on the horizon, the tension between innovation and regulation continues to shape the landscape of Formula 1 racing, promising an exhilarating season ahead.
The world of Formula 1 remains a thrilling battleground of engineering prowess, strategic thinking, and competitive spirit, and the latest regulatory changes will undoubtedly play a crucial role in the unfolding drama of the season.
